4th Avenue Gateway Center

Brighton, Colorado

Project Description

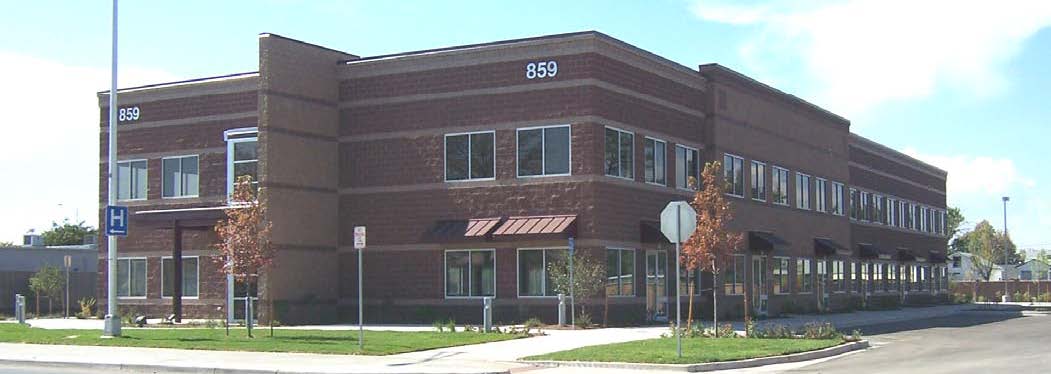

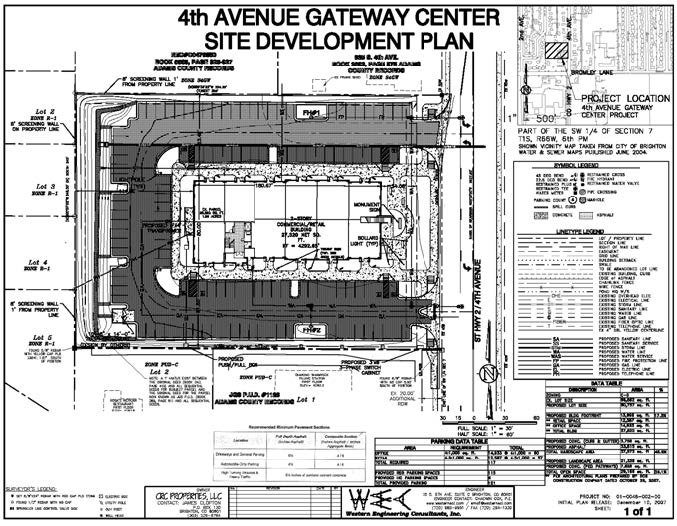

CRC Properties first approached Western Engineering to help them achieve approvals for an affordable housing project on the 1.85 acre site. After two City review processes, better business opportunities for a Commercial Business Park presented themselves. WEC then re-designed the site layout to accommodate an approximate 14,400 sq ft foot print (27,520 total) maximizing the building footprint while still providing appropriate parking, access, storm detention, and site landscaping. CRC Properties dedicated additional right of way along South 4th Avenue to assist the City in providing a safer, longer turn lane for southbound 4th Avenue traffic onto westbound Bromley Lane. The additional right of way dedication and turn lane design significantly enhanced pre-existing curb slopes and flat roadway cross slopes. In addition to the major improvements to the City minor arterial, South 4th also is under CDOT jurisdiction. The approval process for the South 4th improvements were reviewed and approved by both the City and CDOT. Additional improvements to South 4th included a redundant parallel waterline on site, burial of overhead utilities, and installation of a new City streetlight.

Highlights

Roadways Improvements - the developer was required to dedicate additional right of way, widen the City minor arterial to include an extension of the existing deceleration/turn lane, re-build curb and gutter while correcting in adequate slope issues, relocation of existing street light electrical distribution, new street light pole, and correction of inadequate and variable roadway cross slope by virtue of new asphalt, roto-milling, and complete half street overlay from center-line to curb lip. All designs were coordinated not only with City staff but also CDOT as South 4th Avenue is also State Highway 2.

Project Cost

$5,000,000

Client

CRC Properties, LLC
